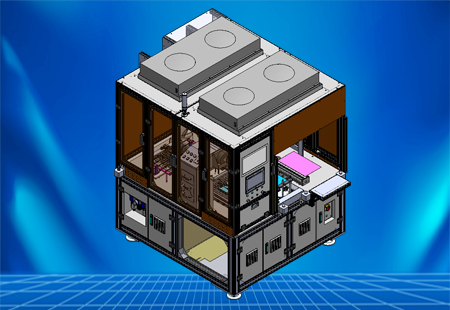

Intelligent REF Assembly Machine

Illustration :

This machine can automatically transfer and locate backlight plate, and load, clean, suck, locate, assemble, press and check REF. It adopts visual location with scan function, and bind visual information with product together with one-key changeover function.

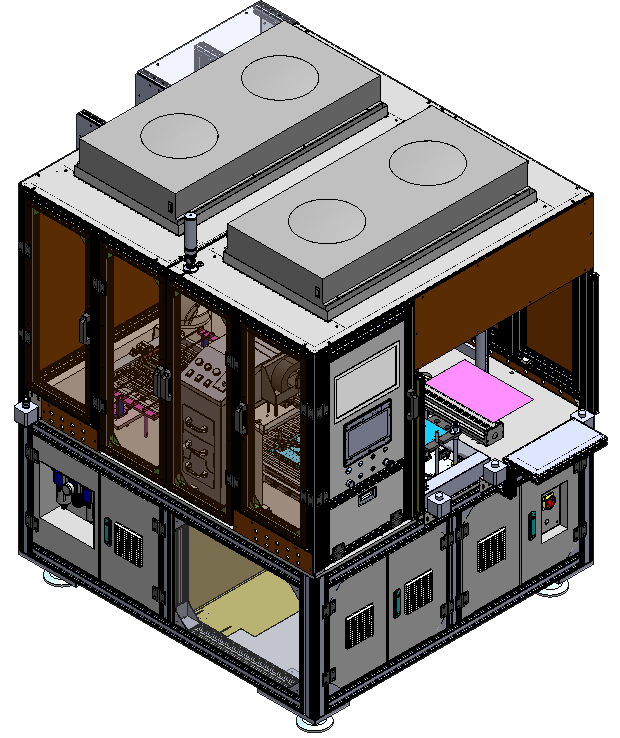

Schematic Diagram

Basic Parameter

Boundary Dimension: L1600mm, W1700mm (excluding unloading transfer arm), H2050mm (excluding tower lamp, FFU)

Weight:1200kg

Power Supply：AC220V，5KW

Air Supply：0.5~0.7MPa，≥300L/min

CT:10s

Assemble Precision:±0.15mm

Product Specification：10.1~15.6 Inch

REF Load Thickness：100mm

Standard Configuration

•CCD Visual System: Hikvision CCD, Cognex Vision Pro Software

•Robot: EPSON

IPC：ADLINK

PLC：OMRON

Optional Configuration

Equipment Characteristics

Batch loading of REF, with long change period and short loading time

REF and backlight plate adopt CCD visual location with high precision

Adopt 6-axis transfer arm to assemble REF with flexibility and fast speed

Design based on dust-free high standard to ensure the control of internal clean class and yield. The clean class is up to a thousand level

Be equipped with scan function. It can bind data from visual location and checking and product and be traced to ensure yield;

Be equipped with one-key changeover function; switch to different products quickly to ensure production efficiency;

Production data within 30 days can be saved, and can be connected to MES system.
