Intelligent LGP Assembly Machine

Illustration :

This machine can automatically transfer and locate backlight plate, and load, clean, suck, locate, assemble, press and check LGP. It adopts visual location with scan function, and bind visual information with product together, and be with one-key changeover function.

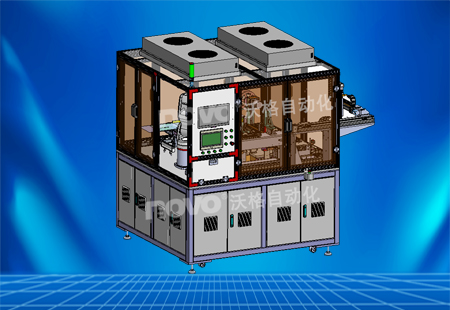

Schematic Diagram

Basic Parameter

Boundary Dimension: L1800mm, W1700mm (excluding unloading transfer arm), H2050mm (excluding tower lamp, FFU)

Weight: 1200kg

Power Supply: AC220V, 5KW

Air Supply：0.5~0.7MPa，≥300L/min

CT: 11s

Assembly Precision: ±0.05mm (repetition precision for the same product)

Product Specification：10.1~15.6 Inch

LGP Load Thickness: 300mm

Standard Configuration

•CCD Visual System: Hikvision CCD, Cognex Vision Pro Software

•Robot: Inovance

IPC：ADLINK

PLC：OMRON

Optional Configuration

Equipment Characteristics

Batch loading of LGP, with long change period and short loading time;

LGP and backlight plate adopt CCD visual location with high precision;

Adopt 6-axis transfer arm to assemble LGP with flexibility and fast speed;

Design based on dust-free high standard to ensure the control of internal clean class and yield. The clean class is up to a thousand level;

Be equipped with scan function. It can bind data from visual location and product and be traced to ensure yield;

Be equipped with one-key changeover function. That is to say, it can switch to different LGPs quickly;

Production data within 30 days can be saved, and can be connected to MES system.
