TV Assembly Line

Illustration :

This production line is suitable for 43~55 inch LCD TV assembly line, with automatic reflector cleaning, automatic reflector assembly, LB code scanning, diffusion plate automatic cleaning, AOI detection, automatic OC group and other functions, the beat is 9s.

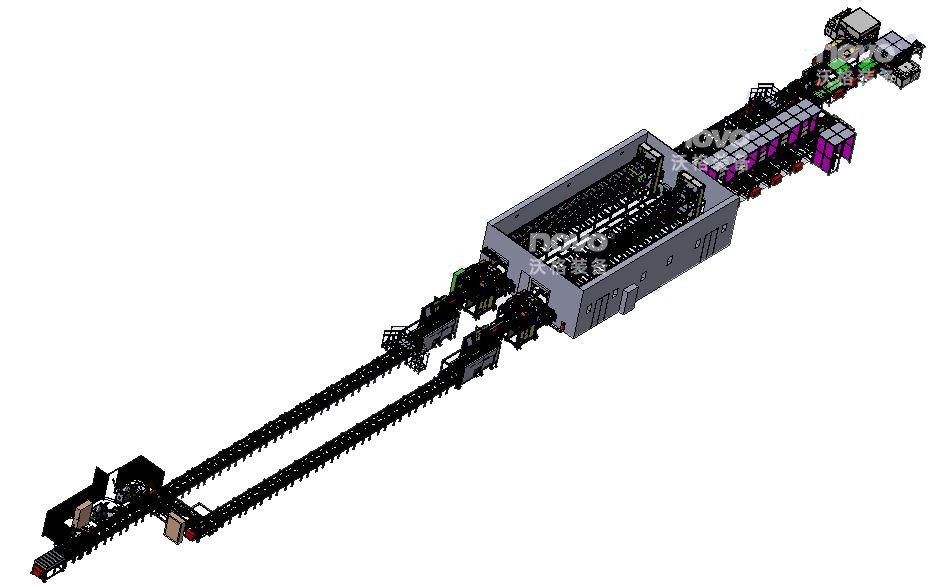

Schematic Diagram

Basic Parameter

Product specification

The equipment is suitable for 43-55 inch LCD TV
Length: 900~1300mm
Width: 500~700mm

Technical parameter

Machine size: 84500mm (net length) x9500mm (net width) x2600mm (internal height)
Input voltage: 380V Power: 270KW
Compressed air: 0.7MPa
Vacuum: more than 80kPa flow rate: 560L/min
Beat CT: 9s (FT station is manual, not included in the overall operation CT)

Standard Configuration

Optional Configuration

Equipment Characteristics
