In recent years, China's LCD panel industry has gradually matures, which also drives the backlight module industry to flourish. Even in today's MINI /Micro LED, laser display and QLED technologies, LCD technology is still firmly in the middle of the world.

Moreover, the LCD industry chain in mainland China is becoming more and more complete, and the production technology of backlight modules for display equipment is becoming more and more perfect along with the development of the LCD panel industry. In the future, "5G+8K" is expected to become one of the main driving forces for TFT-LCD panel demand. Shipments of TFT-LCD panels are expected to grow by 12.20% from 223 million square meters to 249 million square meters between 2019 and 2023, according to the data.

At present, the domestic backlight display module is mainly used in smart phones and vehicle display, medical display, industrial control equipment display, home appliance display, other consumer electronic display and other professional display products. In November last year (2020), the new generation of backlight module assembly line of Vogel Equipment was officially delivered. In terms of product design and development, process support, technical control difficulty and other aspects, it exceeded any previous backlight module assembly line, and its intelligence and core process technology reached the highest level in the industry.

Wuxi Novo has long carried out strategic deployment in the field of intelligent equipment, which coincidents with the current national advocacy of "taking intelligent manufacturing as the main direction to accelerate the innovative development of the industrial Internet".

Wuxi Novo Equipment (booth no. : 1 e28) was founded in 2009, always with technology innovation and Japanese quality control system and enjoys a high reputation, is committed to global customers with intelligent equipment, whole line automation solutions and software and hardware integration "" smart factory solution, widely used in consumer electronics, flat panel display, 5 g communications and other fields.


Novo was listed on the New Third Board (NEEQ) in 2016 with the stock code of 838365, and planned to transfer to the NEEQ for IPO. After more than ten years of development, Vogel has initially developed into a modern enterprise group integrating R & D, design, assembly and manufacturing as well as after-sales service. Its subsidiaries include Wuxi Vogel Software Co., Ltd., Wuxi Magnotron Vogel Vacuum Equipment Co., Ltd. (a Sino-Korean joint venture, Vogel Holdings) and other member enterprises.

A. The Scale of Backlight Module Assembly Line

（DIC Expo products in 2020）

▼

Wuxi Novo exhibited the scale of backlight module assembly line at DIC Expo last year (2020).

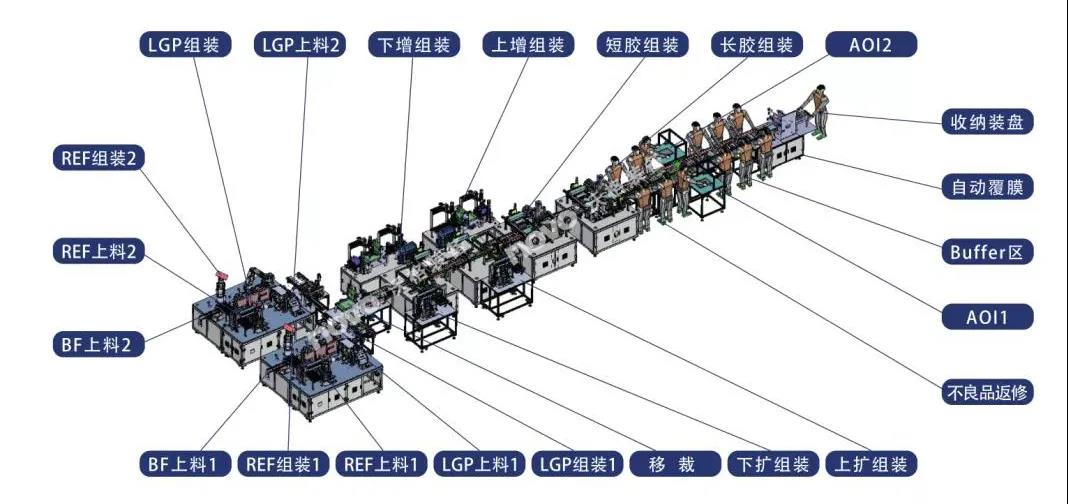

The program is designed for vogel demand online flow operation BLU intelligent assembly lines, seven function in intelligent system integration: feeding, group and guide, clean, diffusion plate assembly, good piece assembly, stick to the glue, AOI detection, automatic labeling, meet the demand of the backlight module production, improve production efficiency, effectively save the cost of production.

· Low cost: less labor input;

· Zero damage: non-contact, reducing human loss;

· High efficiency: efficient management and efficient handover.

Function Introduction:
1. The reflector is automatically grouped
2. Light guide plate is automatically assembled
3. The light guide plate is automatically cleaned
4. Film is automatically attached
5. Tape automatically attached
6. AOI test
7. Automatic film coating

Technical parameters:
1.Overall dimension:
22000 x 4500 x1800mm (H);
2, power distribution: AC220V, 66KW;
3, compressed air: 0.5~ 0.7Mpa, ≥800L/min;
4, vacuum: ≤ 85KPa;
5. Rhythm: 6s
6, assembly accuracy: ±0.15mm(the same product repeat accuracy)

This equipment is used for general glass, special-shaped glass.

The main functions are as follows:

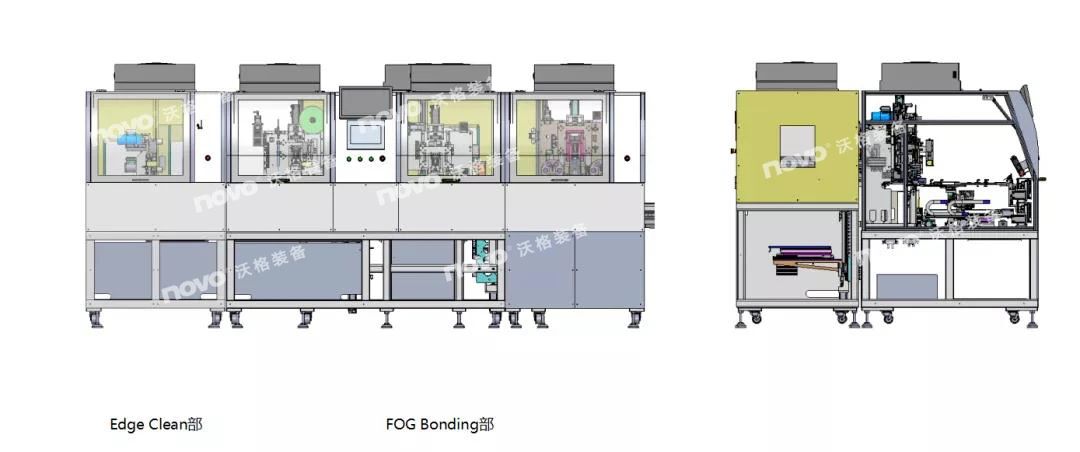

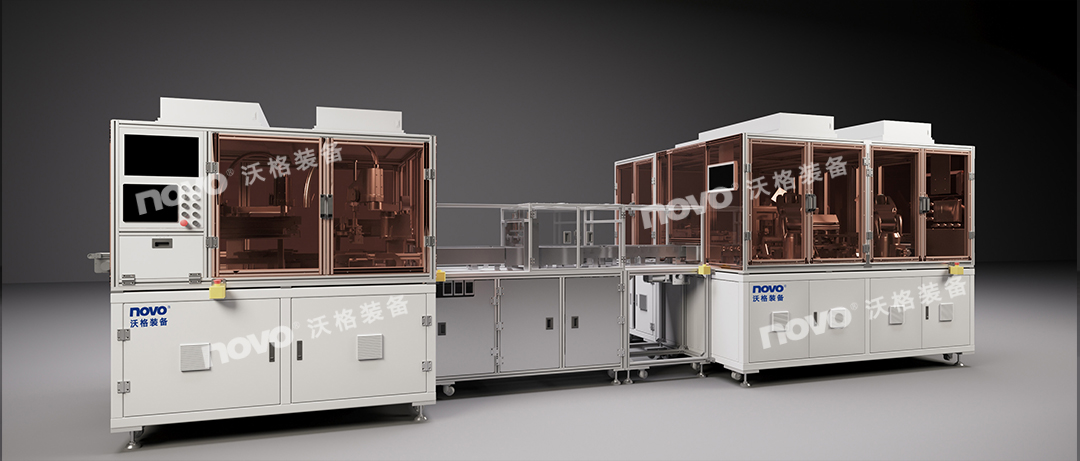

1) After discharge of the COG Bonding device;
2) A device with Edge Clean (option), ACF attachment, FPC (COF) false pressure and FPC (COF) self pressure;
3) To bond according to the positions of panel and FPC (COF);
4) FOG Bonding will be discharged to AOI device after completion.

Basic Parameters:
1. Component Specifications
Applicable size: 10.1-21 inches (depending on customer requirements)

2. Applicable specifications
1) Applicable shape: ordinary glass, special-shaped glass;
2) Equipment compaction precision: ±0.007mm;


3. Equipment Parameters
1) External dimension: L x W x H: 4000x2100x1650mm (including Edge Clean part);
2) Power supply: AC220V, 13.5KW;
3) Equipment CT: 15s/1 piece (related to the time of local pressure, the site can be increased or decreased to shorten the beat according to customer requirements);

Action Flow:
1. Clean Glass
The glass is transferred to the Edge Clean platform from the front work station. The Camera of the Edge Clean department takes pictures of the glass Mark alignment. After the platform is adjusted, the glass is cleaned.

2. ACF Stick
Load transfer 1. The glass on the Buffer is transferred to the ACF platform, and the camera in the ACF section shoots the glass Mark alignment. After the platform adjusts the position, the ACF will be affixed to the platform.

3. False Compression
Load shifting 2 transfers the glass on the ACF platform to the false pressing platform. At the same time, the FPC moving and sending institution transfers the FPC to the false pressing head, which adsorbs the FPC. The false pressing head camera shoots the glass Mark and FPC for counter-position, and presses the platform after adjusting its position.

4. This pressure maintains the pressure
Load transfer 3 Transfer the glass on the false pressure platform to the local pressure platform. The local pressure camera shoots the glass Mark/ shape alignment. After the platform adjusts its position, the platform will be maintained for pressure.

5. Glass delivery
Transfer load 4 Transfer the glass on this pressure platform to the next station.


On June 30, 2021 - July 2, China (Shanghai) international exhibition display technology and application innovation (hereinafter referred to as "DIC EXPO") will be held in Shanghai new international EXPO center, at the same time will also be a WFS international exhibition of functional thin film technology, DIC FORUM and topic, comprehensive coverage industry hotspot of each big BBS, BBS, such as DIC Mini/Micro LED car LED by wei DIC vehicle display BBS, global data exclusive conference, etc. DIC Expo and WFS are jointly organized by LCD Branch of China Opto-Optoelectronics Industry Association, China Electronics Chamber of Commerce, China Electronic Materials Industry Association, Nikkei BP, and Korea Display Industry Association KDIA. They are the largest and highest level trade fairs in the display industry.



DIC EXPO and Novo Equipment will work together with materials, components and equipment companies in the display production chain to help them with brand exposure, new product launches and supplier relationship maintenance. The purpose of DIC EXPO and Vogel Equipment is to provide industry buyers and professionals with the most cutting-edge market information, the most cutting-edge technology, the most high-quality communication and learning platform.
